[NCBrain AICAM]
11. What’s the unmanned operating rate?
- Currently, tool preparation, setting are needed.
- The operating rate is lowered due to human errors
with manual CAM.
- In case of AICAM, the above work is not necessary by
using the fifteen(15) ATC and CAM automation.
- Complete unmanned through ATC management by dividing
NC data according to tool life.
[NCBrain AICAM]
12. How much is a defect rate?
-
Over/less cutting and collision have decreased sharply by verification.
- The
missing or interference of EDM is verified.
-
But
the
interface
error
of CAD data must be confirmed by the person.
[NCBrain AICAM]
13. What is different between manual CAM and AICAM?
-
Manual CAM
requires CNC engineers to machining.
- AICAM brings more benefit by
complete unmanned automation.
[NCBrain AICAM]

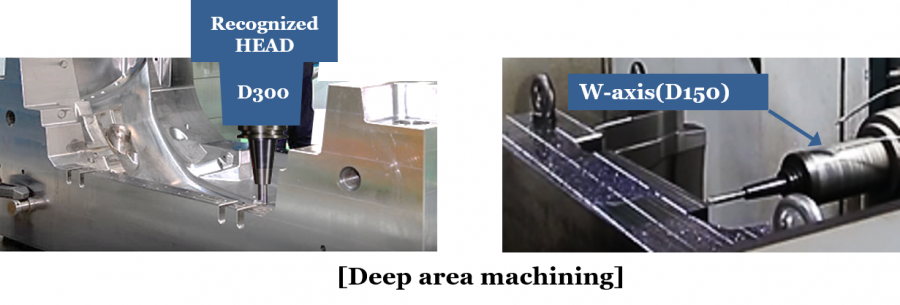

14. Is it possible to machining deep or large workpiece?
-
It can be machined if input NC Head or W-axis
size.
-
It can be machined if register customer’s
special long tool.
-
Large sized mold such as bumper is not recommended due to
excessive calculation time and NC data volume.
- The door trim is calculated stably.
[NCBrain AICAM]
15. Can residual off or finish off be excluded after Semi-finish or Finish machining in relief & EDM area, etc?
-
Yes,
you can specify the area to be excepted by color on modeling.
-
You
can set to only four(4)
processes of semi-finishing with D15r3.5 and D5r1,
whole finishing with D8R3, residual with Ball4
- It
is also possible by toolpath editing.
